P300-4

Minimum Rating

275.0 kVA / 220.0 kW

Maximum Rating

300.0 kVA / 240.0 kW

Emissions/Fuel Strategy

Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Request a Quote

View Product Downloads

SKU: f79cc4e8e6a1 Categories: ,

Full Specifications

Generator Set Specifications

Minimum Rating 275 kVA / 220 kW
Maximum Rating 300 kVA / 240 kW
Emissions/Fuel Strategy EUIIIa Emissions Compliant
50 Hz Prime 275 kVA / 220 kW
50 Hz Standby 300 kVA / 240 kW
Frequency 50 Hz
Speed 1500 RPM
Voltage 115-415 Volts

Engine Specifications

Engine Model Perkins® 1506D-E88TAG4
Bore 112.0 mm (4.4 in)
Stroke 149.0 mm (5.9 in)
Governor Type Electronic
Displacement 8.8l (537.0 cu. in)
Compression Ratio 16.1:1

Optional Equipment

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry (AH1)

Control Panels

  • PowerWizard 2.1+ Control Panel (PWT2.1)
  • EasYgen 2500 control panel

Starting/Charging

  • Lead Acid battery (Dry)

General

  • Upgrade to Standard Set for “CE” Certification
  • Compact Skid Base for Open Sets

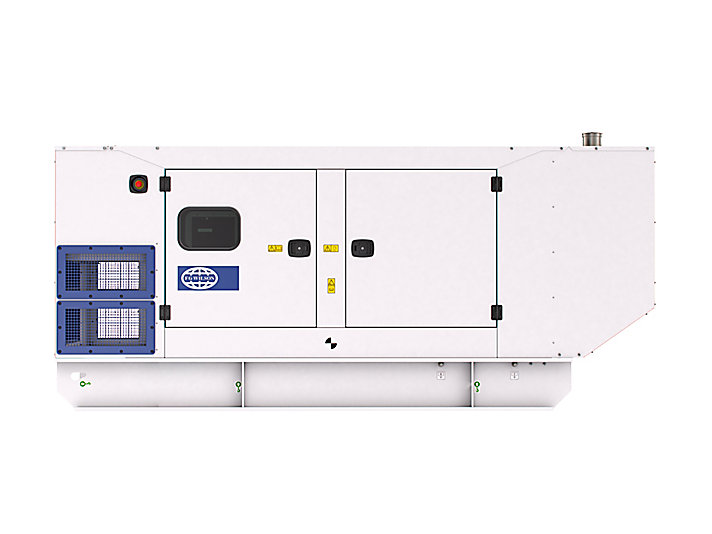

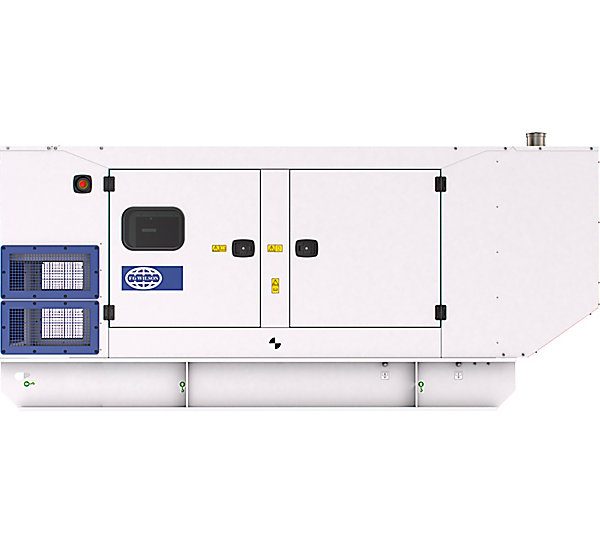

  • Sound attenuated, steel or galvanised enclosure
  • Dual wall base tank

Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Coolant Drain Valve
  • Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive
  • Cooling System filled with Coolant mix
  • Radiator and Cooling Fan

Exhaust

  • Exhaust stub pipe and gasket

Fuel

  • 8 Hr Fuel Tank
  • Fuel Fittings for Local and Remote Feed

Alternator

  • FG Wilson
  • SHUNT Excitation
  • IP23 Protection
  • Coastal Insulation Protection

Control Panel

  • PowerWizard 1.1+

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Certified Base Mounted Lifting Eyes, and Rear Drag Eyelets
  • Battery Tray and Cables
