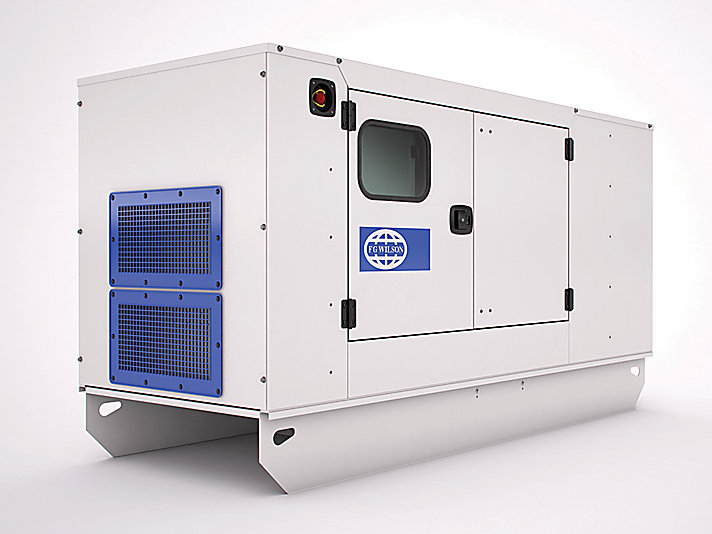

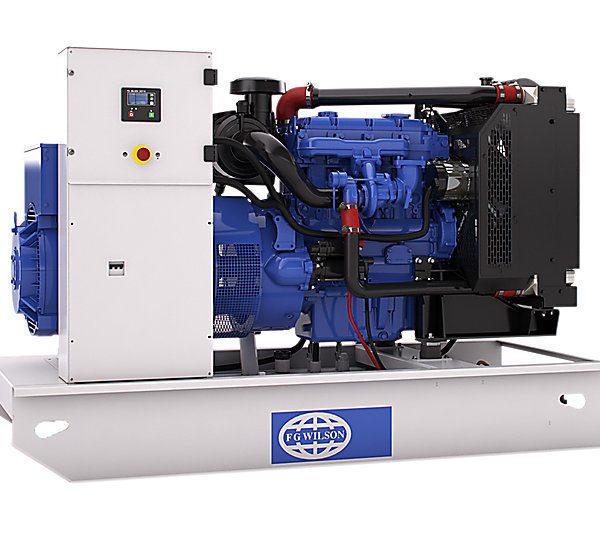

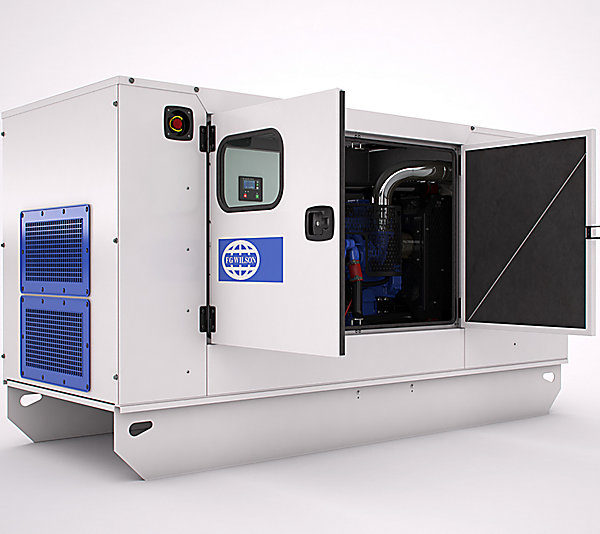

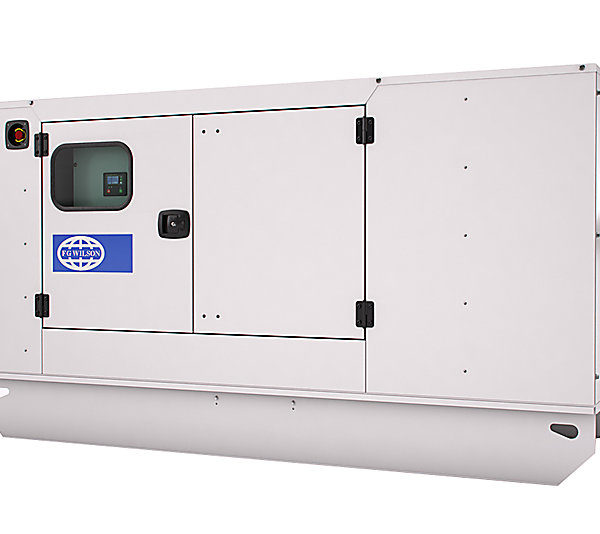

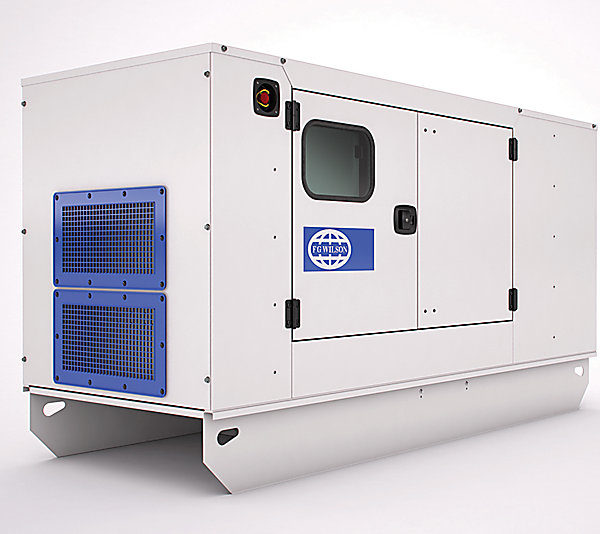

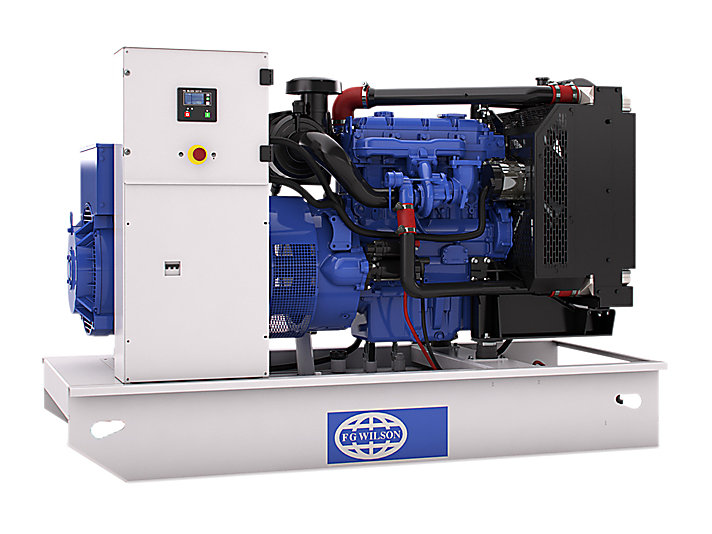

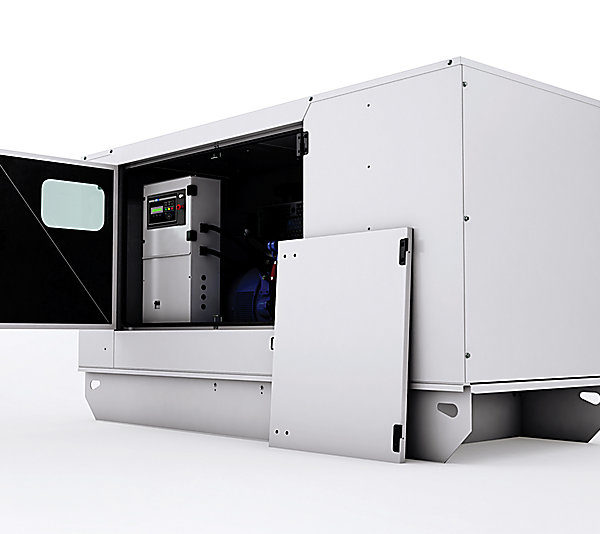

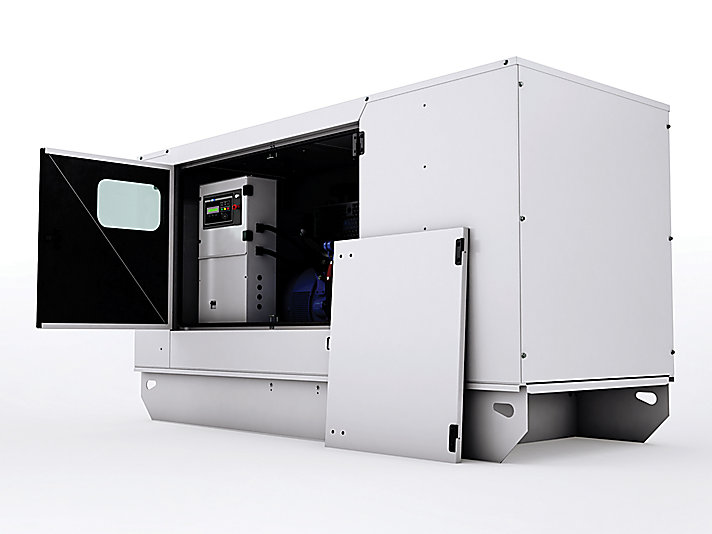

P40-3S

Minimum Rating
36.0 kVA / 36.0 kW

Maximum Rating
45.0 kVA / 45.0 kW

Emissions/Fuel Strategy
Fuel Optimised

Request a Quote

View Product Downloads

SKU: 82f286b63610 Categories: ,

Full Specifications

Generator Set Specifications

Minimum Rating 36.0 kVA / 36.0 kW
Maximum Rating 45.0 kVA / 45.0 kW
Emissions/Fuel Strategy Fuel Optimised
50 Hz Prime 36.0 kVA / 36.0 kW
50 Hz Standby 40.0 kVA / 40.0 kW
60 Hz Prime 40.0 kVA / 40.0 kW
60 Hz Standby 45.0 kVA / 45.0 kW
Frequency 50 / 60 Hz
Speed 1500 or 1800 RPM
Voltage 220-240 Volts
50 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
60 Hz Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).
50 Hz Standby Rating Standard reference conditions 25�C (77�F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Engine Specifications

Engine Model Perkins® 1103A-33TG1
Bore 105 mm (4.1 in)
Stroke 127 mm (5 in)
Governor Type Mechanical
Displacement 3.3l (201.4 cu. in)
Compression Ratio 17.25:1
